We specialize in manufacturing a series of condenser tube expanders. Our qualitative range of these products are designed and manufactured using hi-tech machines and tools. In addition, we use high grade raw material and enure these are quality tested by our quality analysts in varied parameters.

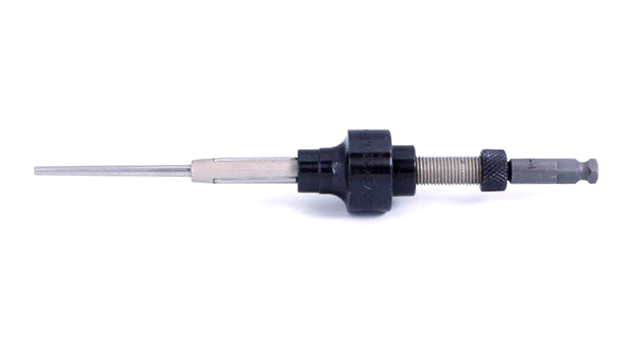

L-AN Series Expander
Usage :Oil Coolers, Radiators and other apparatus with small diameter tubes.
Advantages :Captive mandrel which eliminates nut on mandrel tip and prevents internal scratching on the ID of the tubes. Increased feed angle makes it the fastest operating tool available, ideal for high production environments.

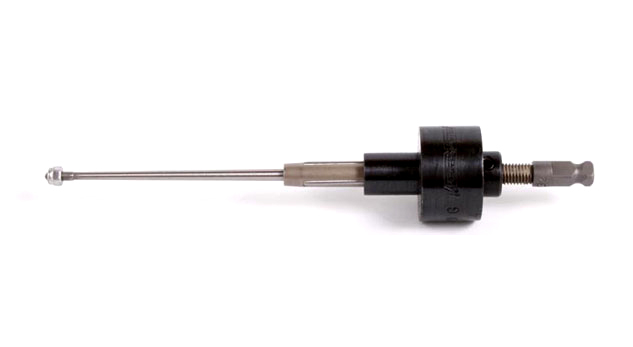

L-900 Series Expander
Usage :Oil Coolers, Radiators and other apparatus with small diameter tubes
Specifications :

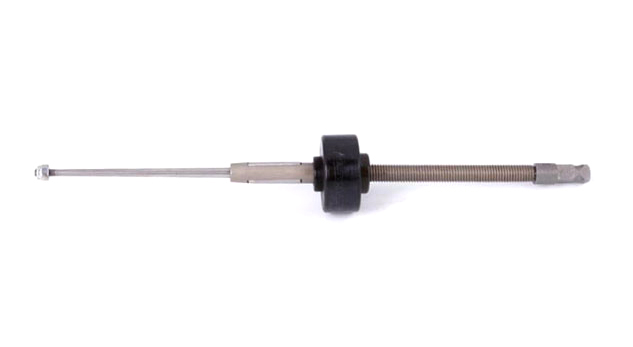

L-1300 Series Expander
Usage :Oil Coolers, Radiators and other apparatus with small diameter tubes and thick tube sheet.
Specifications :

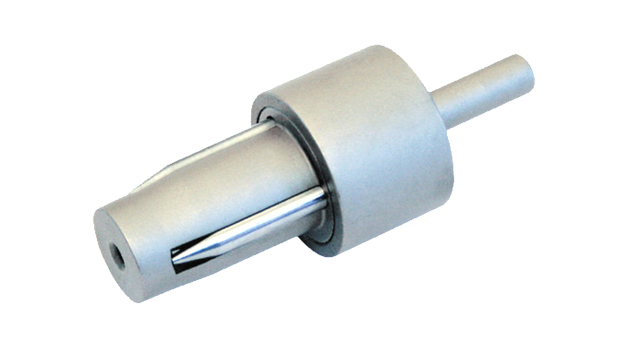

L-AL Series Expander
Usage :Enlarges the ends of copper, brass, and aluminum tubing so that another tube of same size may be inserted into expanded section and soldered for leak-resistant joint. Expanders are designed to leave 0.015 " clearance for slip fit. Average depth of expansion is 3/4".
Specifications :
L-800 Series Expander
Usage :Use on heat exchangers and condensers with tubes of 1/2"-1.1/2" O.D.
Specifications :

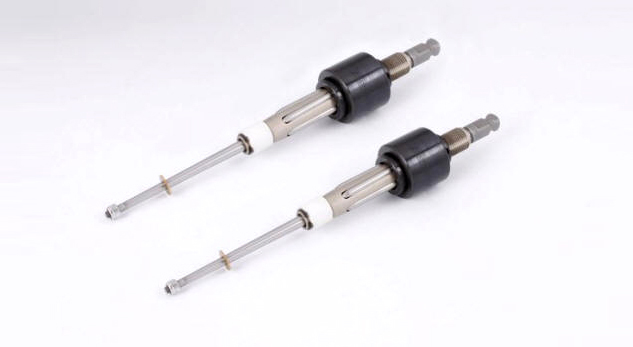

L-800-5 Series Expander
Highly recommended for use on thin walled condenser tube expanders (19 thru 22 gauge walls) of Stainless Steel, Titanium, In coloy and other exotic material.
Usage :Gives a more concentric and even expansion when expanding thin walled condenser tube expanders vs a conventional 3 roll condenser tube expanders and reduces condenser tube expanders spring back effect.
Specifications :

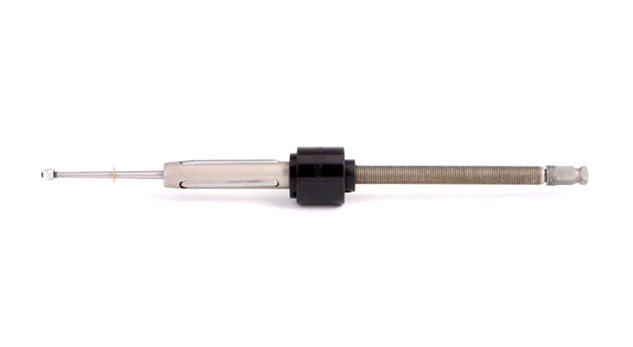

L-1200 Series Expander
Most popular tool worldwide for heat exchangers and condensers with tubes of 5/8"-1.1/2" O.D. and thick tube sheet. Longer reach expanders are available.
Specifications :

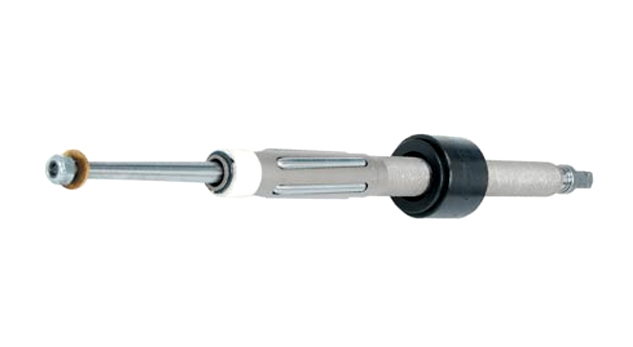

L-1200-5 Series Expander
Usage :Enlarges the ends of copper, brass and aluminum tubing so that another tube of same size may be inserted into expanded section and soldered for leak-resistant joint. Expanders are designed to leave 0.015 " clearance for slip fit. Average depth of expansion is 3/4".
Specifications :
